Make Hard Cutting Easy
Pipe cutting
Applications
  • The pipe cutting C.cutting is versatile in machinery applications and can perform many operations. Pipeline cutting with this equipment provides the best solution.
  • The pipe cutting machine is designed in a compact way with precision casting alloy components, which give huge benefits to fit together. The machine is very compact for limited access operations and reduced in weight for more ergonomic work.
  • The transportable pipe cutting machine, type C.cutting for the preparation of pipes and pipelines, can be nearly used without limitations on site. The machines are extremely lightweight, do not require much space and convince by a simple installation. They distinguish by its numerous machinery application possibilities.

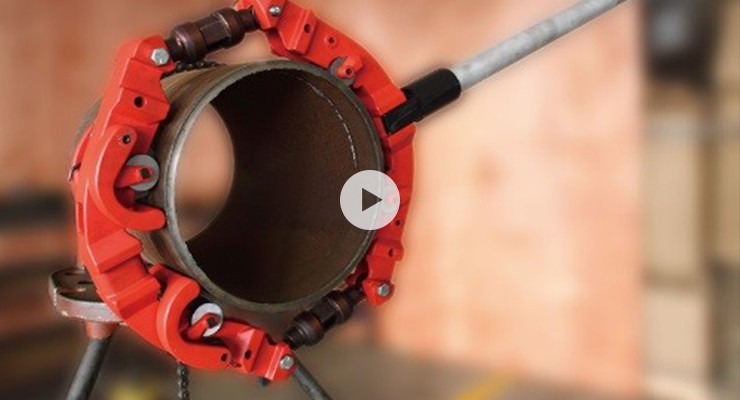

Manual Cutting
Advantages
Perfect pipe cold cutter for machinery operations where cold cutting methods are often required
  • Improved the working efficiency of the operator
  • Quiet construction environment (below 60 db)
  • Eco-friendly, no spark and dust when cutting operation
  • Minimal cutter rotation (90-110 degree) as necessary for tight quarters.
  • Extremely low weight of the Manual pipe cutter for easy handling and lifting
  • High quality ductile iron seat frame is safe and durable
  • Quick and safe clamping and adjustment
  • Perfect pipe cold cutter for machinery operations where cold cutting methods are often required
Detail Information
      For Cast Iron Pipe For Cast Iron Pipe For Stainless Steel Pipe
Catalog
Number
Suitable Item
Model
Type of
Model
Pipe Size
(inch)
Wall Thickness
(mm)
Pipe Size
(inch)
Wall Thickness
(mm)
Pipe Size
(inch)
Wall Thickness
(mm)
Mark
311205 H2S Hinged 1"-2 1/2" 2.77—5.15 1"-2 1/2" 2.77—5.15 1"-2 1/2" 2.77—5.15 Learn More
311201 H4S Hinged 2"-4" 2.77—6.02 2"-4" 3—6 2"-4" 3—6 Learn More
311202 H6S Hinged 4"-6" 3—7.11 4"-6" 3—6 4"-6" 3—6 Learn More
311203 H8S Hinged 6"-8" 3.4—8.18 6"-8" 3.4—6 6"-8" 3.4—6 Learn More
311204 H14S Rotary 10"-14" 4.19—11.1 10"-12" 4.19—6 10"-12" 4.19—6 Learn More
.

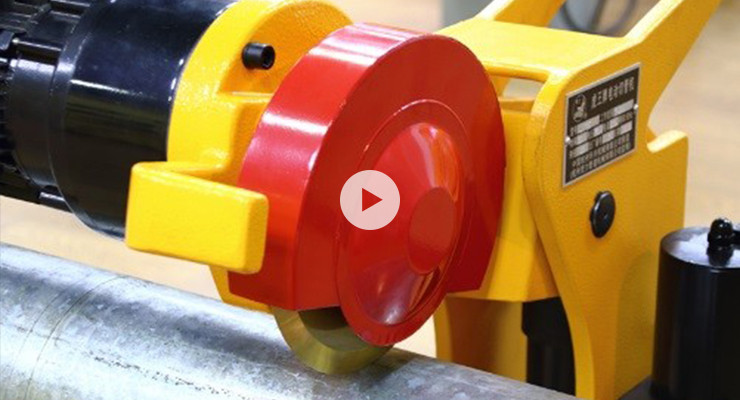

Power Cutting
Advantages
  • Improved the working efficiency of the operator
  • Quiet construction environment (below 60 db)
  • Eco-friendly, no spark and dust when cutting operation
  • Easily cut 6m long pipes and φ210mm hole
  • The professional hydraulic system consisting of pump and cylinder ensures stable feeding speed and guarantees high quality while cutting
  • Constant 24 rpm(Pipe cutting)&110 rpm(Pipe hole cutting) for safe operation
  • All surround type wheel & saw protection for safe operation
  • Optional heavy duty removable base
Detail Information
Catalog Number Suitable Item Model Type of Model Motor Speed Cutting Capacity Mark
307202 QG8C-A Pipe Cutting Machine 550W Induction 24 Rpm 2”-8” sch 10/40 Learn More
308204 QG12C Pipe Cutting Machine 750W Induction 24 Rpm 2”-12” sch 10/40 Learn More
309201 JK114 Pipe Hole Cutting Machine 550W Induction 110 Rpm Cutting Capacity: 14mm-114mm
Pipe Mounting Capacity:1 1/4”-8”
(OD:42mm-219mm)
Drill Chuck Capacity:3-16mm
Learn More
310202 JK150 Pipe Hole Cutting Machine 1500W Induction 110 Rpm Cutting Capacity: 14mm-152mm
Pipe Mounting Capacity:1 1/4”-12”
(OD:42mm-323mm)
Drill Chuck Capacity:3-16mm
Learn More
.
Cutting Wheel
Advantages
  • The optimal technological parameter of wheel material was obtained by metallographic structure analysis
  • Strong heat treatment and processing capacity to ensure hardness and wear resistance
  • Blacken galvanized surface is beautiful and helpful in prevent rust
  • Precise cutting angle 15° to suit the squeezing cutting
  • Surface precision(A perfect circle) to ensure pipe cutting accuracy
  • 5 holes design to guarantee stable cutting
  • Eco-friendly, no spark and dust when cutting operation
  • Wildcard capability: Ridgid, Reed
Detail Information
      For Steel Pipe For Cast Iron Pipe For Stainless Steel Pipe
Catalog
Number
Suitable Item
Model
Type of
Model
Pipe Size
(inch)
Wall Thickness
(mm)
Pipe Size
(inch)
Wall Thickness
(mm)
Pipe Size
(inch)
Wall Thickness (mm) Mark
75619 GQ8C/QG12C Power 2”-12” 2.77-10.3 2”-6” 3—6 2”-6” 3—6 Learn More
40601026 H2S Hinged 1"-2 1/2" 2.77—5.15 1"-2 1/2" 2.77—5.15 1"-2 1/2" 2.77—5.15 Learn More
40601014 H4S Hinged 2"-4" 2.77—6.02 2"-4" 3—6 2"-4" 3—6 Learn More
40601017 H6S Hinged 4"-6" 3—7.11 4"-6" 3—6 4"-6" 3—6 Learn More
40601020 H8S Hinged 6"-8" 3.4—8.18 6"-8" 3.4—6 6"-8" 3.4—6 Learn More
40601024 H14S Rotary 10"-14" 4.19—11.1 10"-12" 4.19—6 10"-12" 4.19—6 Learn More
Further Advantages
We will give reasonable advice based on your further request.
Reduce your communication costs
High-quality service team leaves you with no trouble
Always make your hard cutting easy
